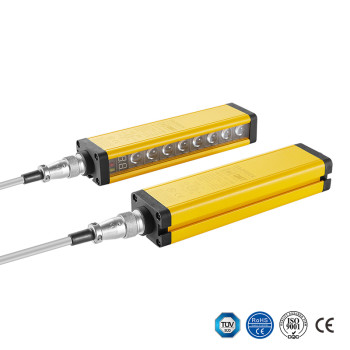

For ABB Orion1 Series 30 mm Resolution 19 m Sensing Distance 1500 mm to 1800 mm Protective Height Base Light Curtain Replacement
group nameABB Safety Light Curtains Replacement
-
Min Order1 piece
brand nameDADISICK
modelOrion1 Series | Orion1-4-30-150-B, Orion1-4-30-165-B, Orion1-4-30-180-B
payment methodT/T
-
update timeFri, 08 Nov 2024 14:57:15 GMT
Paramtents
Series: Orion1 Series
Resolution: 30 mm
Scanning range: 0.2 - 19 m
Protective field height: 1500 - 1800 mm
2 Safety outputs (OSSD): 2 PNP
Response time: 25 - 28 ms
Connection type: M12
security level: PLe4
Packging & Delivery
Min Order1 piece
Briefing
DADISICK is a professional manufacturer of safety sensors with solid product manufacturing capabilities.
Detailed
For ABB Orion1 Series 30 mm Resolution 19 m Sensing Distance 1500 mm to 1800 mm Protective Height Base Light Curtain Replacement Parameter
Brand | From network | DADISICK |
|
|
Models
|
Orion1-4-30-150-B | QMT76-20-1500 2BE |
|
Orion1-4-30-165-B |
QMT84-20-1660 2BE | ||
Orion1-4-30-180-B | QMT90-20-1780 2BE |
||
Beam spacing | 30 mm | 20 mm | |
Protected altitude | 1500 mm, 1650 mm, 1800 mm | 1500 mm, 1660 mm, 1780 mm | |
Scanning range | 0.2 - 19 m | 0.3 - 20 m | |
Response time | 25 ms - 28 ms | ≤15 ms | |
Output method | 2 PNP | 2 PNP | |
Reliability and durability | IP65 | IP65 | |
Connector | M12 | M16 | |
Housing cross-section | 32.3 mm x 36.9 mm | 51 mm x 35 mm | |
Safety Certificate | TÜV, EC, ＵL | TÜV, UL, CE, RoHS, GB | |
We are able to reproduce the specific connection configuration of each brand with high level of accuracy. | |||
Product model display instructions
The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand ABB's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.
Product recommendations
FAQ
Q: How to determine if a safety light curtain is working properly?
A：
Safety light curtains are also known as safety light screens, safety light curtain sensors, infrared safety light curtains, photoelectric protectors, infrared photoelectric protectors, punch press photoelectric protection devices, etc.
How to determine if a safety light curtain is in working mode?
Many customers may have doubts when using a light curtain for the first time, wondering if it is installed correctly and if it is in normal working mode.
Because the purpose of a safety light curtain is to protect personal safety, it must be taken seriously. So how can we determine if a safety light curtain is in working mode?
When the safety light curtain is powered on, the emitter will flash three times and then remain on, indicating that it has entered the working mode. The receiver will have red and green lights flashing three times when powered on, indicating that it has also entered the working mode.
What are the conditions for the safety light curtain to be working properly?
When the emitter and receiver are in working condition, the emitter's red light remains on, and the receiver's green light is illuminated. When the light curtain is obstructed, there is no change in the emitter's indicator light, but the receiver's light changes from green to red, and the digital display shows the number of blocked light beams. When there is no obstruction, the receiver returns to its normal state with a constant green light.
