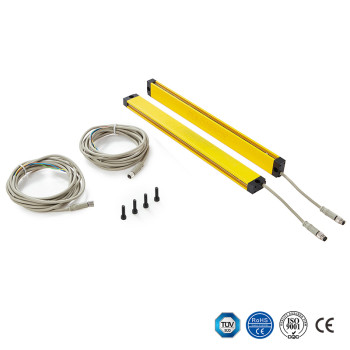

For PEPPERL+FUCHS SLCS14 Series 14 mm Resolution 8 m Sensing Distance 100 mm to 1200 mm Protective Height Extended Light Curtain Replacement

group namePepperl+Fuchs Safety Light Curtains Replacement
Min Order1 piece
brand nameDADISICK
modelSLCS14 Series | SLCS14-0100-R, SLCS14-0100-T, SLCS14-0200-R, SLCS14-0200-T, SLCS14-0300-R, SLCS14-0300-T, SLCS14-0400-R, SLCS14-0400-T, SLCS14-0500-R, SLCS14-0500-T, SLCS14-0600-R, SLCS14-0600-T, SLCS14-0700-R, SLCS14-0700-T, SLCS14-0800-R, SLCS14-0800-T, SLCS14-0900-R, SLCS14-0900-T, SLCS14-1000-R, SLCS14-1000-T, SLCS14-1100-R, SLCS14-1100-T, SLCS14-1200-R, SLCS14-1200-T
payment methodT/T
update timeFri, 08 Nov 2024 19:41:06 GMT

contact supplier

Paramtents

Series: SLCS14 Series
Resolution: 14 mm
Scanning range: 0.4 - 8 m
Protective field height: 100 - 1200 mm
2 Safety outputs (OSSD): 2 PNP
Response time: 11 - 54 ms
Connection type: M12
security level: PLe4

Packging & Delivery

Min Order1 piece

Briefing

DADISICK is a professional manufacturer of safety sensors with solid product manufacturing capabilities.

Detailed

Technical Data

Wiring Diagrams/Dimensional Drawings

Downloads

For PEPPERL+FUCHS SLCS14 Series 14 mm Resolution 8 m Sensing Distance 100 mm to 1200 mm Protective Height Extended Light Curtain Replacement Parameter

Brand	Receiver	Transmitter	DADISICK
Models	SLCS14-0100-R	SLCS14-0100-T	QBT12-10-110 2BA
	SLCS14-0200-R	SLCS14-0200-T	QBT20-10-190 2BA
	SLCS14-0300-R	SLCS14-0300-T	QBT30-10-290 2BA
	SLCS14-0400-R	SLCS14-0400-T	QBT40-10-390 2BA
	SLCS14-0500-R	SLCS14-0500-T	QBT50-10-490 2BA
	SLCS14-0600-R	SLCS14-0600-T	QBT60-10-590 2BA
	SLCS14-0700-R	SLCS14-0700-T	QBT70-10-690 2BA
	SLCS14-0800-R	SLCS14-0800-T	QBT80-10-790 2BA
	SLCS14-0900-R	SLCS14-0900-T	QBT90-10-890 2BA
	SLCS14-1000-R	SLCS14-1000-T	QBT100-10-990 2BA
	SLCS14-1100-R	SLCS14-1100-T	QBT110-10-1090 2BA
	SLCS14-1200-R	SLCS14-1200-T	QBT120-10-1190 2BA
Beam spacing	14 mm		10 mm
Protected altitude	100 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm		110 mm, 190 mm, 290 mm, 390 mm, 490 mm, 590 mm, 690 mm, 790 mm, 890 mm, 990 mm, 1090 mm, 1190 mm
Scanning range	0.4 - 8 m		0.3 - 3 m
Response time	11 ms - 54 ms		≤15 ms
Output method	2 PNP		2 PNP
Reliability and durability	IP67		IP65
Connector	M12		M8
Housing cross-section	20 mm x 29.5 mm		15 mm x 30 mm
Safety Certificate	TÜV, UL, EC, UKCA		TÜV, UL, CE, RoHS, GB
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand PEPPERL+FUCHS's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

DADISICK QBT Series Machine Light Curtains

QBT series safety light curtain

Model：

QBT12-10-110 2BA, QBT20-10-190 2BA, QBT30-10--290 2BA

QBT40-10-390 2BA, QBT50-10-490 2BA, QBT60-10-590 2BA

QBT70-10-690 2BA, QBT80-10-790 2BA, QBT90-10-890 2BA

QBT100-10-990 2BA, QBT110-10-1090 2BA, QBT120-10-1190 2BA

Data sheet download

FAQ

Q：How to determine if a safety light curtain is working properly?

A：

Safety light curtains are also known as safety light screens, safety light curtain sensors, infrared safety light curtains, photoelectric protectors, infrared photoelectric protectors, punch press photoelectric protection devices, etc.

How to determine if a safety light curtain is in working mode?

Many customers may have doubts when using a light curtain for the first time, wondering if it is installed correctly and if it is in normal working mode.

Because the purpose of a safety light curtain is to protect personal safety, it must be taken seriously. So how can we determine if a safety light curtain is in working mode?

When the safety light curtain is powered on, the emitter will flash three times and then remain on, indicating that it has entered the working mode. The receiver will have red and green lights flashing three times when powered on, indicating that it has also entered the working mode.

What are the conditions for the safety light curtain to be working properly?

When the emitter and receiver are in working condition, the emitter's red light remains on, and the receiver's green light is illuminated. When the light curtain is obstructed, there is no change in the emitter's indicator light, but the receiver's light changes from green to red, and the digital display shows the number of blocked light beams. When there is no obstruction, the receiver returns to its normal state with a constant green light.
