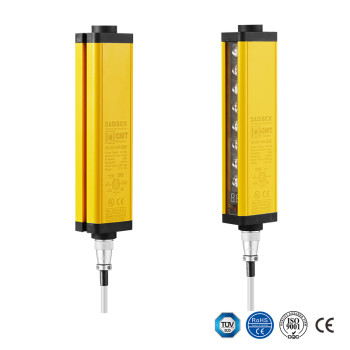

For Pilz PSENopt II Series 30 mm Resolution 18 m Sensing Distance 1500 mm to 1800 mm Protective Height Basic Type 3 Light Curtain with Hand Protection Replacement

group namePilz Safety Light Curtains Replacement
Min Order1 piece
brand nameDADISICK
modelPSENopt II Series | PSEN opII3H-s-30-150, PSEN opII3H-s-30-165, PSEN opII3H-s-30-180
payment methodT/T
update timeFri, 08 Nov 2024 19:43:22 GMT

contact supplier

Paramtents

Series: PSENopt II Series
Resolution: 30 mm
Scanning range: 0.2 - 18 m
Protective field height: 1500 - 1800 mm
2 Safety outputs (OSSD): 2 PNP
Response time: 11 - 12.3 ms
Connection type: M12
security level: PLd3

Packging & Delivery

Min Order1 piece

Briefing

DADISICK is a professional manufacturer of safety sensors with solid product manufacturing capabilities.

Detailed

Technical Data

Wiring Diagrams/Dimensional Drawings

Downloads

For Pilz PSENopt II Series 30 mm Resolution 18 m Sensing Distance 1500 mm to 1800 mm Protective Height Basic Type 3 Light Curtain with Hand Protection Replacement Parameter

Brand	From network	DADISICK
Models	PSEN opII3H-s-30-150	QMT76-20-1500 2BE
	PSEN opII3H-s-30-165	QMT84-20-1660 2BE
	PSEN opII3H-s-30-180	QMT92-20-1820 2BE
Beam spacing	30 mm	20 mm
Protected altitude	1500 mm, 1650 mm, 1800 mm	1500 mm, 1660 mm, 1820 mm
Scanning range	0.2 - 18 m	0.3 - 20 m
Response time	11 ms - 12.3 ms	≤15 ms
Output method	2 PNP	2 PNP
Reliability and durability	IP65	IP65
Connector	M12	M16
Housing cross-section	40 mm x 35 mm	51 mm x 35 mm
Safety Certificate	CE, UKCA, cULus Listed, KCs, TÜV, EAC	TÜV, UL, CE, RoHS, GB
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand Pilz's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

DADISICK QMT Series Machine Light Curtains

QMT series safety light curtain

Model：

QMT76-20-1500 2BE

QMT84-20-1660 2BE

QMT92-20-1820 2BE

Data sheet download

FAQ

Q: How to determine if a safety light curtain is working properly?

A：

Safety light curtains are also known as safety light screens, safety light curtain sensors, infrared safety light curtains, photoelectric protectors, infrared photoelectric protectors, punch press photoelectric protection devices, etc.

How to determine if a safety light curtain is in working mode?

Many customers may have doubts when using a light curtain for the first time, wondering if it is installed correctly and if it is in normal working mode.

Because the purpose of a safety light curtain is to protect personal safety, it must be taken seriously. So how can we determine if a safety light curtain is in working mode?

When the safety light curtain is powered on, the emitter will flash three times and then remain on, indicating that it has entered the working mode. The receiver will have red and green lights flashing three times when powered on, indicating that it has also entered the working mode.

What are the conditions for the safety light curtain to be working properly?

When the emitter and receiver are in working condition, the emitter's red light remains on, and the receiver's green light is illuminated. When the light curtain is obstructed, there is no change in the emitter's indicator light, but the receiver's light changes from green to red, and the digital display shows the number of blocked light beams. When there is no obstruction, the receiver returns to its normal state with a constant green light.
