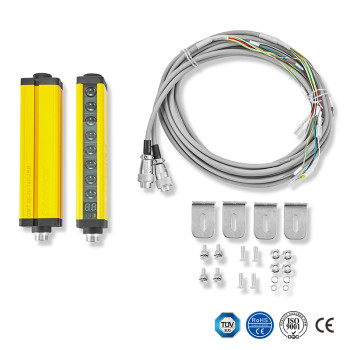

For RIKEN OPTECH RFG414 Series 10 mm Resolution 10 m Sensing Distance 880 mm to 1880 mm Protective Height Extended Light Curtain Replacement

group nameRIKEN OPTECH Safety Light Curtains Replacement
Min Order1 piece
brand nameDADISICK
modelRFG414 Series | RFG414-980FL3, RFG414-1180FL3, RFG414-1380FL3, RFG414-1580FL3, RFG414-1780FL3, RFG414-1980FL3
payment methodT/T
update timeFri, 08 Nov 2024 20:51:39 GMT

contact supplier

Paramtents

Series: RFG414 Series
Resolution: 10 mm
Scanning range: 0.3 - 10 m
Protective field height: 880 - 1880 mm
2 Safety outputs (OSSD): 2 PNP
Response time: 10 - 21 ms
Connection type: M12
security level: PLe4

Packging & Delivery

Min Order1 piece

Briefing

DADISICK is a professional manufacturer of safety sensors with solid product manufacturing capabilities.

Detailed

Technical Data

Wiring Diagrams/Dimensional Drawings

Downloads

For RIKEN OPTECH RFG414 Series 10 mm Resolution 10 m Sensing Distance 880 mm to 1880 mm Protective Height Extended Light Curtain Replacement Parameter

Brand	From network	DADISICK
Models	RFG414-980FL3	QMT88-10-970 BC
	RFG414-1180FL3	QMT108-10-1070 2BC
	RFG414-1380FL3	QMT128-10-1270 2BC
	RFG414-1580FL3	QMT148-10-1470 2BC
	RFG414-1780FL3	QMT168-10-1670 2BC
	RFG414-1980FL3	QMT188-10-1870 2BC
Beam spacing	10 mm	10 mm
Protected altitude	880 mm, 1080 mm, 1280 mm, 1480 mm, 1680 mm, 1880 mm	970 mm, 1070 mm, 1270 mm, 1470 mm, 1670 mm, 1870 mm
Scanning range	0.3 - 10 m	0.3 - 10 m
Response time	10 ms - 21 ms	≤15 ms
Output method	2 PNP	2 PNP
Reliability and durability	IP65	IP65
Connector	M12	M16
Housing cross-section	32 mm x 38 mm	51 mm x 35 mm
Safety Certificate	CE, ＵL	TÜV, UL, CE, RoHS, GB
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand RIKEN OPTECH's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

DADISICK QMT Series Machine Light Curtains

QMT series safety light curtain

Model：

QMT88-10-970 BC, QMT108-10-1070 2BC, QMT128-10-1270 2BC

QMT148-10-1470 2BC, QMT168-10-1670 2BC, QMT188-10-1870 2BC

Data sheet download

FAQ

Q：How to determine if a safety light curtain is working properly?

A：

Safety light curtains are also known as safety light screens, safety light curtain sensors, infrared safety light curtains, photoelectric protectors, infrared photoelectric protectors, punch press photoelectric protection devices, etc.

How to determine if a safety light curtain is in working mode?

Many customers may have doubts when using a light curtain for the first time, wondering if it is installed correctly and if it is in normal working mode.

Because the purpose of a safety light curtain is to protect personal safety, it must be taken seriously. So how can we determine if a safety light curtain is in working mode?

When the safety light curtain is powered on, the emitter will flash three times and then remain on, indicating that it has entered the working mode. The receiver will have red and green lights flashing three times when powered on, indicating that it has also entered the working mode.

What are the conditions for the safety light curtain to be working properly?

When the emitter and receiver are in working condition, the emitter's red light remains on, and the receiver's green light is illuminated. When the light curtain is obstructed, there is no change in the emitter's indicator light, but the receiver's light changes from green to red, and the digital display shows the number of blocked light beams. When there is no obstruction, the receiver returns to its normal state with a constant green light.
