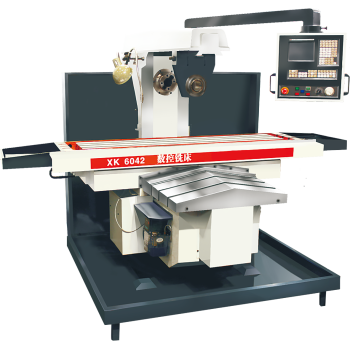

XK6042 Horizontal milling arbor
group nameCNC Milling Machine
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelXK6042
-
update timeFri, 01 Nov 2024 19:24:43 GMT
Paramtents
BRAND ZOPO CNC
CNC FANUC/KND/HNC
CONTROL Horizontal milling arbor
Packging & Delivery
Min Order1 piece
Briefing
CNC knee type milling machin,Horizontal milling arbor, rigidity structure
Detailed
XK6042
CNC KNEE TYPE MILLING MACHINE
1100/400/375mm
X/Y/Z axis travel
420×1800mm
Worktable size
1500rpm
Spindle speed
4000/3000/2000mm/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Rigidity structure +Stability precision
This horizontal knee type milling machine has high rigidity structure and stable precision. Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
This CNC knee type milling machine has high rigidity structure and stable precision. Configured with high performance numerical control system, which can achieve X Y Z combined
The machine has complete functions, high degree of automation, easy operation and reliable performance.
High rigidity and stability of mechanical structure
The spindle is driven by a fully enclosed flanged disk motor YE2-16L
-6-B5, which is with power of 11kW, spindle speed 975rpm, it is transmit by a flexible coupling and the gear of the speed change mechanism. Depend on the mechanism, the spindle speed range from 30-1500rpm, 18 steps.
3 axe adopt high-precision ball screws, Y axis driven by motor directly, others driven by the synchronous belt, which devoted to high precision.
Three directions guideway are equipped with quenching and plastic coating, which can improve to high accuracy and long life.
Extensive Application
The machine has advantages on maching complex and high presision products, no matter for one piece or big batch, like cam, sample, module, arc groove and so on.
More machining can achieve with some accessories like universal indexing head, circular table and so on.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1100/400/375 mm
- Distance from spindle nose to table surface
- 125-500 mm(spindle center)
- Distance from table center to vertical guideway
- 350-750 mm
Worktable
Unit
- Worktable size
- 420x1800mm
- T slots
- 3-18*100mm
- Max. load bearing of worktable
- 750kg
Spindle Unit
- Spindle hole taper
- 7：24 No.50
- Spindle power
- 11KW
- Max. spindle speed
- 1500rpm
Feed
Unit
- Rapid feed speed
- 2000mm/min
- Feed speed range
- 4000/3000/2000mm/min
Accuracy
Unit
- Positioning accuracy
- 0.025mm
- Re-positioning accuracy
- 0.015mm
Machine
Unit
- Machine dimension
- 2500*2600*2047mm
- Machine weight
- 5100kg
