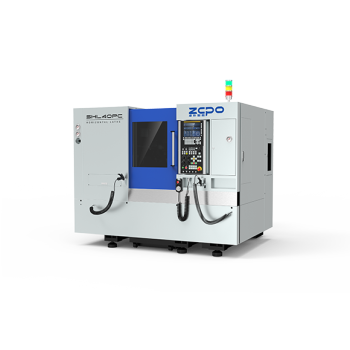

SHL40PC High-application Driven-Turret
group nameCNC Horizontal Lathe
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelSHL40PC
-
update timeFri, 01 Nov 2024 13:28:54 GMT
Paramtents
Brand ZOPO Intelligent
CNC Fanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole Taper A2-5
Control Mode Semi-closed loop
Packging & Delivery
Min Order1 piece
Briefing
High Efficiency, Compact Design, Low Cost
Detailed
SHL40PC
High Capability
High Efficiency, Compact Design, Low Cost
Φ400mm
Max.Swing Over Bed
300mm
Max.Turning Length
Φ320mm
Max.Turning Dia
A2-5
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Compact Design&High Efficenty
The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency.
High Rigidity Structure
The design of the body and components has high rigidity, which can ensure stability during the machining process, reduce vibration and deformation, and improve the processing accuracy.
Flexible Processing
Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ400mm
- Max.Turning Length
- 300mm
- Max.Turning Dia
- Φ320mm
- Max. Swing Over Carriage
- Φ160mm
- X/Z Axis Travel
- 460/365mm
Spindle
Unit
- Spindle Hole Taper
- A2-5
- Max. Passing Bar Dia.
- Φ42mm
- Spindle Speed Range
- 50-5000mm
- Power
- 5.5/7.5kW
- Standard Chuck Dia.
- Φ42Collet
Feed
Unit
- Rapid Feed Rate
- 20/24m/min
Tailstock
Unit
- Tailstock Spindle Taper
- /
Turret
Unit
- Standard Turret
- Gang Tool/Driven Head
- Nearby Tool Select
- /
Machine
Unit
- Machine Dimension
- 2200*1600*1700mm
- Machine Weight
- 2500kg
