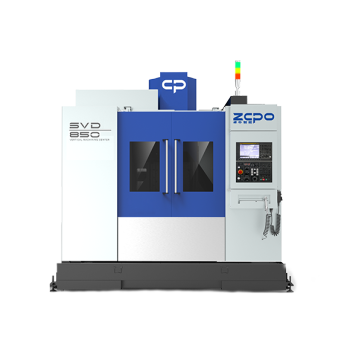

SVD850 Direct spindle
group nameSV Series - Excellent Models
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelSVD850
-
update timeFri, 01 Nov 2024 17:31:32 GMT
Paramtents
BRAND ZOPOCNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE DIRECT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class
Detailed
SVD850
High speed and high efficiency model
The best choice for processing performance and processing range in the same level
850/520/560mm
X/Y/Z axis travel
500×1000mm
Worktable size
12000rpm
Spindle speed
48/48/32m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
Stable and reliable bed structure
- The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
- The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
- The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.
Closed spindle box
The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.
Direct spindle
Stable and reliable tool changing system
Parameters
Working range
Unit
- X/Y/Z axis travel
- 850/520/560mm
- Distance from column to spindle center
- 592mm
- Distance from table surface to spindle nose
- 120-680mm
Worktable
Unit
- Worktable size
- 500x1000mm
- T-slot size
- 5-18*100mm
- Max. load bearing of worktable
- 600kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 7.5/11KW
- Spindle speed
- 12000(direct)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 48/48/32m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Accuracy
Unit
- Positioning accuracy
- 0.008mm
- Re-positioning accuracy
- 0.004mm
Machine
Unit
- Machine dimension
- 2250*2700*2850mm
- Machine weight
- 6800kg
