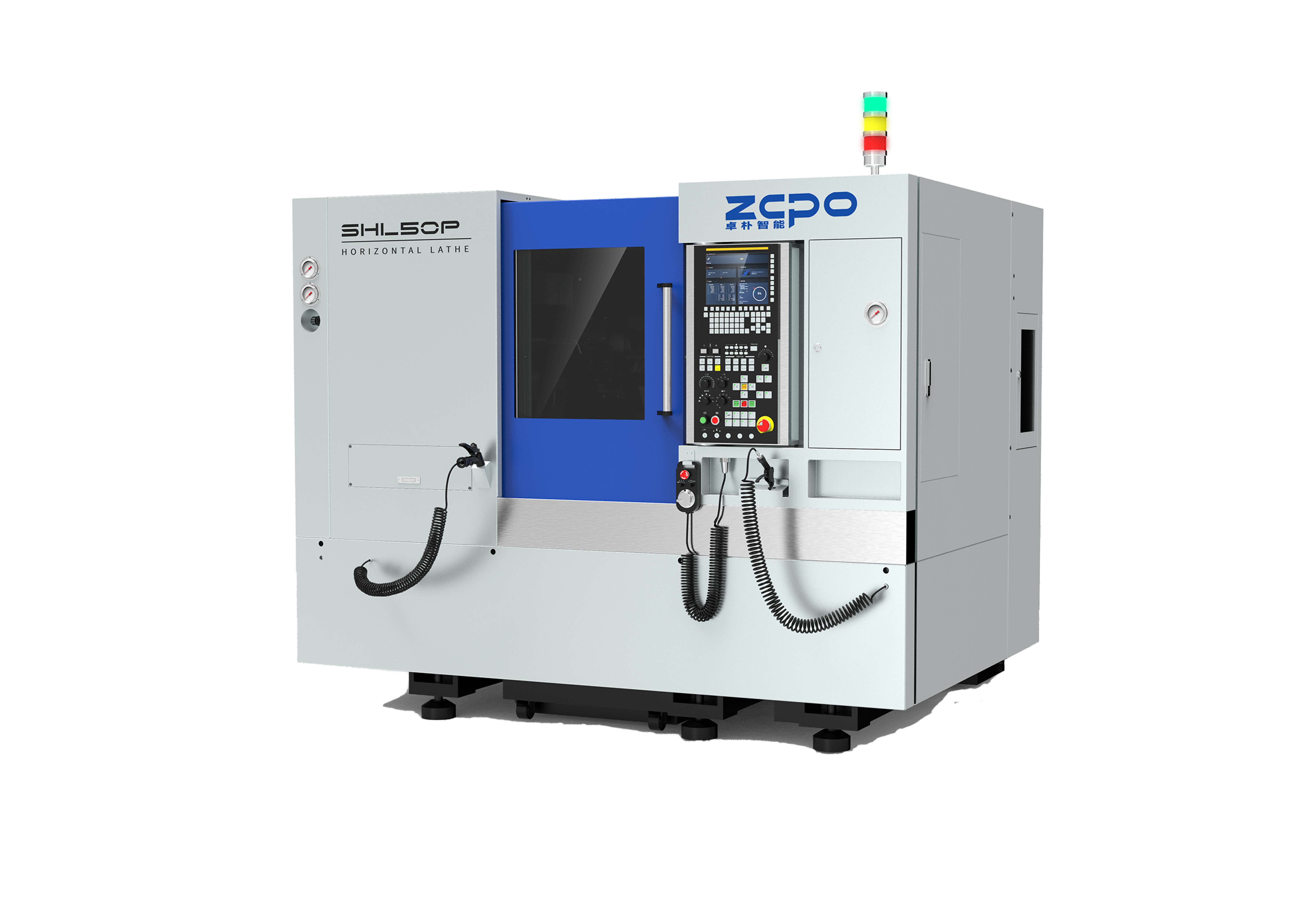

SHL50P High Application
group nameCNC Horizontal Lathe
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelSHL50P
-
update timeFri, 01 Nov 2024 13:24:41 GMT
Paramtents
Brand ZOPO Intelligent
CNC Fanuc/GNC/KND
Spindle Hole Taper A2-6
Control Mode Semi-closed loop
Packging & Delivery
Min Order1 piece
Briefing
Small Floor Area，Strong Processing capability，Balancing rough and finish turning
Detailed
SHL50P
High Capability
Small Floor Area，Strong Processing capability，Balancing rough and finish turning
Φ520mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ360mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
30°Inclined Machine Bed
30° Inclined machine bed，making the center of gravity of the bed lower, the rigidity higher, and the vibration generated during cutting smaller, it is more suitable for deep cutting. Thickened bed saddles are used to improve the deep cutting performance of the machine, and the main functional components are domestically produced, making the machine tool more cost-effective.
Linear Guideway
Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency
Embedded Main Motor
The embedded main motor makes the bed more compact and occupies a smaller area without affecting the machining stroke. It can be equipped with a chip box, side row, or rear row.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ500 mm
- Max.Turning Length
- 500 mm
- Max.Turning Dia
- Φ360 mm
- Max. Swing Over Carriage
- Φ320 mm
- X/Z Axis Travel
- 200/560 mm
Spindle
Unit
- Spindle Hole Taper
- A 2-6
- Max. Passing Bar Dia.
- Φ50 mm
- Spindle Speed Range
- 50-4500 mm
- Power
- 11/15 mm
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5# T
Turret
Unit
- Standard Turret
- 8（Hydraulic）T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2275*1625*1825 mm
- Machine Weight
- 3650 kg
