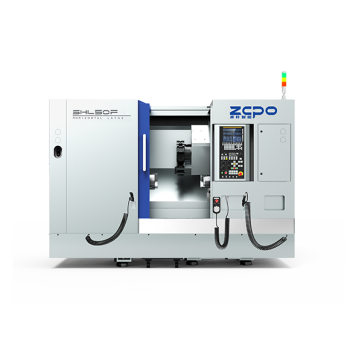

SHL50F Cost-Effective Domestic-Configuration Hydraulic-Turret
group nameCNC Horizontal Lathe
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelSHL50F
-
update timeFri, 01 Nov 2024 13:34:02 GMT
Paramtents
Brand ZOPO Intelligent
CNC Fanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole Taper A2-5
Control Mode Semi-closed loop
Packging & Delivery
Min Order1 piece
Briefing
All domestic configurations with excellent cost-effectiveness
Detailed
SHL50F
Cost-effective
All domestic configurations with excellent cost-effectiveness
Φ500mm
Max.Swing Over Bed
500mm
Max.Turning Length
Φ360mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
30°Inclined Machine Bed
30° Inclined machine bed，making the center of gravity of the bed lower, the rigidity higher, and the vibration generated during cutting smaller, it is more suitable for deep cutting. Thickened bed saddles are used to improve the deep cutting performance of the machine
Linear Guideway
Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency
Embedded Main Motor
The embedded main motor makes the bed more compact and occupies a smaller area without affecting the machining stroke. It can be equipped with a chip box, side row, or rear row.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ500mm
- Max.Turning Length
- 500mm
- Max.Turning Dia
- Φ360mm
- Max. Swing Over Carriage
- Φ320mm
- X/Z Axis Travel
- 200/560mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50mm
- Spindle Speed Range
- 50-4500mm
- Power
- 11/15mm
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5#T
Turret
Unit
- Standard Turret
- 8T
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2275*1625*1825mm
- Machine Weight
- 3650kg
