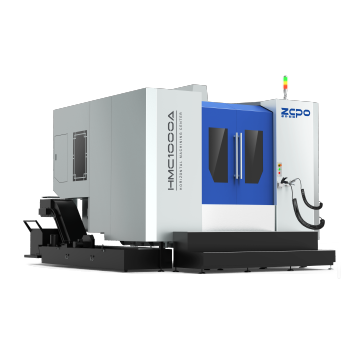

HMC1000A Inverted T type Single worktable
group nameInverted T Type
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelHMC1000A
-
update timeFri, 01 Nov 2024 17:28:06 GMT
Paramtents
BRAND ZOPO CNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE BELT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Inverted T type horizontal center machining, Ideal choice for big batch automation processing lines
Detailed
HMC1000A
INVERTED T TYPE SINGLE WORKTABLE
Ideal choice for big batch automation processing lines
2000/1000/1300mm
X/Y/Z axis travel
1000x1000mm
Worktable size
5300rpm
Spindle speed
20/20/20m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Machine structure
“┻” shape and column moving structure to afford high rigidity and travel speed.
All the machine parts adopted finite element analysis.
Spindle
BT50 high tension spindle.
Broaching force 1800kgf (17640N).
Less prone to vibration during processing.
High precision double nut ball screw
Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed: 20/20/20m/min
High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
Man-machine interaction
Vertical stainless steel armor protection design, Better chip removal.
Combined with steeply sloped chip flutes, reduce manual cleanup time.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 2000/1000/1300mm
- Distance from spindle center to table surface
- 0-1000mm
- Distance from spinlde nose to table surface
- 300-1600mm
Worktable
Unit
- Worktable size
- 1000x1000mm
- Workpiece clamping type
- 7-22x125
- Rotary diameter of workpiece
- Φ1700
- Max. load bearing of worktable
- 2200kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 5300rpm
Feed
Unit
- Max. feed speed
- 5300mm/min
- Rapid feed speed
- 20/20/20m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Accuracy
Unit
- Positioning accuracy
- 0.012mm
- Re-positioning accuracy
- 0.008mm
- B axis positioning accuracy
- 10''
- B axis repositioning accuracy
- 2''
Machine
Unit
- Machine dimension
- 6000*4500*3400mm
- Machine weight
- 18000kg
