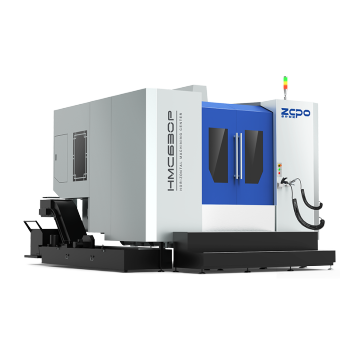

HMC630P Inverted T type Double worktable
group nameInverted T Type
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelHMC630P
-
update timeFri, 01 Nov 2024 19:24:11 GMT
Paramtents
BRAND ZOPO CNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE BELT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Inverted T type horizontal center machining, Ideal choice for big batch automation processing lines
Detailed
HMC630P
INVERTED T TYPE DOUBLE WORKTABLE
Ideal choice for big batch automation processing lines
1050/750/900mm
X/Y/Z axis travel
500x630mm
Worktable size
6000rpm
Spindle speed
24/24/24m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us
Appearance
Characteristics
Machine structure
“┻” shape and column moving structure to afford high rigidity and travel speed;
All the machine parts adopted finite element analysis.
Spindle
BT50 high tension spindle.
Broaching force 1800kgf (17640N).
Less prone to vibration during processing.
High precision double nut ball screw
Guaranteed heavy cutting.
Ensure machining accuracy.
Extend the service life of the lead screw
3 axes rapid feed speed: 24/24/24m/min
High rigidity, high precision
Low noise roller type linear guideway.
Ensure high stability.
Man-machine interaction
Vertical stainless steel armor protection design, Better chip removal.
Combined with steeply sloped chip flutes, reduce manual cleanup time.
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1050/750/900mm
- Distance from spindle center to table surface
- 120-870mm
- Distance from spinlde nose to table surface
- 130-1030mm
Worktable
Unit
- Worktable size
- 630x700mm
- Workpiece clamping type
- 24xM16
- Rotary diameter of workpiece
- Φ950
- Max. load bearing of worktable
- 950kg
Spindle
Unit
- Spindle hole taper
- BT50
- Spindle power
- 15/18.5KW
- Max. spindle speed
- 6000(belt)rpm
Feed
Unit
- Max. feed speed
- 6000mm/min
- Rapid feed speed
- 24/24/24m/min
Tool magzine
Unit
- Tool magzine capacity
- 24T
- Tool changing time
- 5.5S
Accuracy
Unit
- Positioning accuracy
- 0.01mm
- Re-positioning accuracy
- 0.006mm
- B axis positioning accuracy
- 10''
- B axis repositioning accuracy
- 5''
Machine
Unit
- Machine dimension
- 5800*3200*2700mm
- Machine weight
- 14000kg
