Drop Forged Link Chain | Agricultural Conveyor Chain
group nameDrop Forged Chain
-
Min Order100 meter
brand nameCamel Chain Conveyor Chain Manufacturers
modelAlloy Steel Drop Forged Link Chain
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeSat, 02 Nov 2024 07:32:49 GMT
Paramtents
Material 40Cr
Heat Treatment Through Hardening
Surface Treatment None
Sample Available
Packging & Delivery
Min Order100 meter
Briefing
Detailed
Drop Forged Link Chain | Agricultural Conveyor Chain Description：

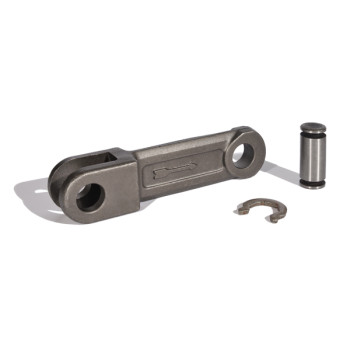

Item Picture:
Drop Forged Link Chain | Agricultural Conveyor Chain Schematic Diagram：
Drop Forged Link Chain | Agricultural Conveyor Chain Specification:
Chain NO. | Pitch | Pin Diameter | Other Dimensions | Ultimate Tensile Strength | |||||
P | D | C | T | F | R | S | Q （20MnCr5） | Q (42CrMo4) | |
10160 | 4" | 0.55" | 1.42” | 0.94" | 0.39" | 0.235" | 0.35” | 24700lbs | 47200lbs |
101.6mm | 14mm | 36mm | 24mm | 10mm | 6mm | 9mm | 110KN | 210KN | |
10160R | 4" | 0.55" | 1.42" | 1.18" | 0.53" | 0.315" | 0.51" | 40500lbs | 74200lbs |
101.6mm | 14mm | 36mm | 30mm | 13.5mm | 8mm | 13mm | 180KN | 330KN | |
12514 | 4.92" | 0.63" | 1.42" | 1.18" | 0.63" | 0.39" | 0.59" | 36600lbs | 65200lbs |
125mm | 16mm | 36mm | 30mm | 16mm | 10mm | 15mm | 163KN | 290KN | |
14218 | 5.59" | 0.98" | 1.97" | 1.65" | 0.81" | 0.47" | 0.75" | 65200lbs | 123700lbs |
142mm | 25mm | 50mm | 42mm | 20.5mm | 12mm | 19mm | 290KN | 550KN | |
14226 | 5.59" | 0.98" | 1.97" | 2.44" | 1.18" | 0.63" | 1.12" | 99000lbs | 177700lbs |
142mm | 25mm | 50mm | 62mm | 30mm | 16mm | 28.5mm | 440KN | 790KN | |
16025 | 6.30" | 0.98" | 1.97" | 1.97" | 1.63" | 0.55" | 0.98" | 83200lbs | 147300lbs |
160mm | 25mm | 50mm | 50mm | 27mm | 14mm | 25mm | 370KN | 655KN | |
20028 | 7.87" | 1.18" | 2.36" | 2.60" | 1.22" | 0.79" | 1.18" | 112500lbs | 202500lbs |
200mm | 30mm | 60mm | 66mm | 31mm | 20mm | 30mm | 500KN | 900KN | |
Overview:
Trustworthy Camelconvey
Camelconvey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camelconvey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
