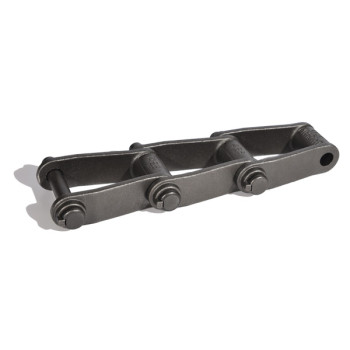

400 Class Sugar Mill Pintle Chain
400 Class Sugar Mill Pintle Chain400 Class Sugar Mill Pintle Chain

400 Class Sugar Mill Pintle Chain

  • group nameSugar Mill Chain

  • Min Order100 meter

  • brand nameCamel Chain Conveyor Chain Manufacturers

  • model400

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeSat, 02 Nov 2024 15:20:07 GMT

contact supplier

Paramtents

  • Material 40Cr

  • Heat Treatment Through Hardening

  • Surface Treatment Natural

  • Sample Available

Packging & Delivery

  • Min Order100 meter

Briefing

400 Class Sugar Mill Pintle Chain is a lightweight, capable of handling average loads at slow or intermediate speeds.

Detailed

400 Class Sugar Mill Pintle Chain Description：

Pintle chains are amongst one of the earliest forms of conveyor chains to have been used, There are several different classes of pintle chain ranging from 400-Class to 900-Class, each class has specific features intended for specific industries and applications. 400 Class pintle chains are manufactured with high-quality cast offset-style links and hardened steel pins. Typically these chains are found in agricultural applications, water treatment facilities, conveying and drive applications, forestry, grain handling, and many more! All of the 400 Class Pintle Chain is produced according to manufacturer's requirements and is totally interchangeable with various other manufacturers' chain. A large range of attachments are available to manage a wide variety of applications. Styles A ,K and G attachments are offered in right and left hand link.

Item Picture:

400 Class Pintle Chain
400 Class Pintle Chain

400 Class Sugar Mill Pintle Chain Schematic Diagram：

400 Class Pintle Chain

400 Class Sugar Mill Pintle Chain Specification:

Chain NO.
Pitch
Dimensions
P
A
B
D1
D2
442
1.375"
0.75"
0.63"
0.31”
0.56"
34.92mm
19.05mm
16mm
7.9mm
14.2mm
452
1.506"
0.84"
0.63"
0.38"
0.69"
38.25mm
21.34mm
16mm
9.65mm
17.5mm
455
1.63"
0.84"
0.69"
0.38"
0.63"
41.4mm
21.34mm
17.5mm
9.65mm
16mm
462
1.634"
0.94"
0.81"
0.44"
0.72"
41.5mm
23.9mm
20.6mm
11.2mm
18.3mm
477
2.308"
1"
0.69"
0.44"
0.81"
58.62mm
25.4mm
17.5mm
11.2mm
20.6mm
488
2.609"
1"
0.75"
0.44"
0.88"
66.27mm
25.4mm
19.05mm
11.2mm
22.35mm
4103
3.075"
1.50"
1"
0.75"
1.25"
78.1mm
38.1mm
25.4mm
19.05mm
31.75mm
Customer dimensions are also available.

400 Class Sugar Mill Pintle Chain with K1 / K2 - Attachments Schematic Diagram：

400 Class Pintle Chain
400 Class Pintle Chain

400 Class Sugar Mill Pintle Chain with K1 / K2 - Attachments Specification:

Chain NO.
Pitch
Dimensions
P
h
L
d
F
W
488
2.609"
0.68"
1.26"
0.33"
3.64"
4.57"
66.27mm
17.3mm
32mm
8.5mm
92.5mm
116mm
4103
3.075"
0.89"
1.50"
0.51"
4.13"
5.08"
78.1mm
22.5mm
38mm
13mm
105mm
129mm
Customer dimensions are also available.

400 Class Sugar Mill Pintle Chain F29 - Attachments Schematic Diagram：

400 Class Pintle Chain

400 Class Sugar Mill Pintle Chain F29 - Attachments Specification:

Chain NO.
Pitch
Dimensions
P
h
G
d
F
W
L
T
4103F29
3.07"
2.64"
2"
0.5"
2.23"
3.28"
2.64"
0.43"
78.1mm
67mm
50.8mm
12.7mm
56.6mm
83.3mm
67mm
11mm
Customer dimensions are also available.
