Metric Forged Chain | High Load Capacity
group nameDrop Forged Rivetless Chain
-
Min Order100 meter
brand nameCamel Chain Conveyor Chain Manufacturers
modelP2
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeSat, 21 Sep 2024 15:29:21 GMT
Paramtents
Material SAE5140 /SAE4140/SAE8642
Heat Treatment Through Hardening
Surface treatment Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample Available
Packging & Delivery
Min Order100 meter
Briefing
Detailed
Metric Forged Chain | High Load Capacity Description：

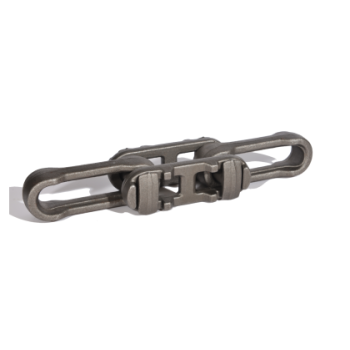

Item Picture:
Metric Forged Chain | High Load Capacity Schematic Diagram：
Metric Forged Chain | High Load Capacity Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
P2-80-106 | 80mm | 12mm | 48mm | 29mm | 13mm | 18.8mm | 13.5mm | 106 KN | Regular |
P2-80-290 | 80MM | 18.4mm | 73mm | 42mm | 20mm | 32mm | 19mm | 290 KN | Regular |
P2-100-220 | 100mm | 16mm | 57mm | 36mm | 16mm | 25.4mm | 17.4mm | 220 KN | X |
Overview:
Trustworthy Camel Convey
Camel Convey is a conveyor chain manufacturer with over 30 years of history. We are passionate about innovation and the pursuit of excellence. Camel Convey has a comprehensive product development and customer service system, continuously improving customer-centric product solutions. Providing the highest quality conveyor chains from China to customers worldwide is our unwavering pursuit.
You need a product
You May Like
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
