Desktop Automatic Screw Tightening Machine / Auto-Screwdriving Machine for PCB Keyboard
group nameLED Lighting Machine
-
Min Order1 piece
brand nameMaxfanlight
modelMX-ZTLSJ041
payment methodL/C, Western Union, MoneyGram, T/T
-
update timeSat, 28 Sep 2024 14:15:10 GMT
Paramtents

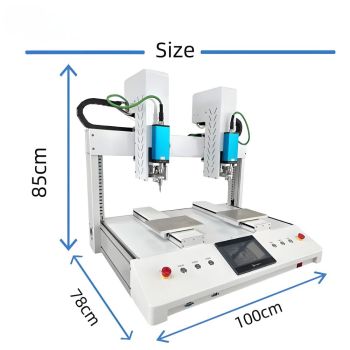

Dimensions： 1000*750*850mm
Screw Feeding: Pick and Place,Magnetic
Voltage: 110~230V 50~60Hz
Weight (KG): 80KG
Core Components： PLC
Repeate Accuracy： ±0.02mm
Power: 800W
Screw Size: M0.8~M5
Name Screw Locking Robot
Adjustable Torque Range： 0.5~20Nm
Packging & Delivery
Min Order1 piece
Briefing
Desktop/floor-standing ,Double Y-axis type, automatically alternate working,tooth slipping and cymbal falling, and can count.
Detailed
Desktop Automatic Screw Tightening Machine / Auto-Screwdriving Machine for PCB Keyboard
Introduction features:
1. Desktop/floor-standing cymbal machines can be placed on the production line.
2. Select the purpose of the all-English mark, which is applicable internationally.
3. Double Y-axis type, automatically alternate working, saving time on placing workpieces.
4. Complete welding procedures, with alarm function for tooth slipping and cymbal falling, and can count.
5. Parameters such as torque, locking time, moving speed time, and post-compensation can be set.
6. It is divided into two feeding methods: blowing type/top type. The feeder and nozzle are customized according to the screw specifications.
7. Provide Chinese operating instructions and training.
|
Model
|
MX-LSJ041
|
MX-LSJ0441-01T
|
MX-LSJ0441-02T
|
MX-LSJ4411-BKB | Fixture Customization |
|
Screw Feeding
|
Pick and Place,Magnetic
|
Need | |||
|
Working Air Pressure
|
0.4~0.6MPA
|
Editorial Model
|
Manual/Automatic | ||
|
Adjustable Torque Range
|
0.8-20Nm
|
Locking screw time
|
1~1.5sec/pc | ||
Machine Axis Number | 3 axis | 4 axis | 4 axis | 4 axis | Max moving speed |
X Axis | 400mm | 400mm | 400mm | 400mm/2X
| 600mm/s |
Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
Control Mode | Microcontroller+Touch Panel | ||||
Teaching File Capacity | 256MB, Up to 999 files, single file up to 1000 points | ||||
Weight(Kg) | 50Kg | 65Kg | 65Kg | 85Kg | Customized |
Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
