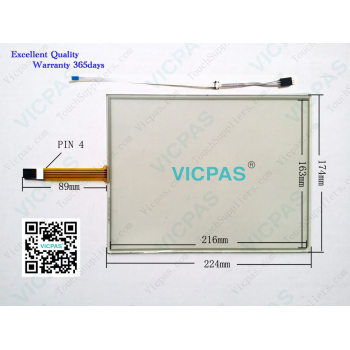

For Newhaven-Display NHD-TS-128128B-4040010 Touch Panel screen membrane FOR 128x128 LCD

group nameTouchscreen for other brand
Min Order1 piece
brand nameVICPAS
modelNHD-TS-128128B-4040010
payment methodT/T, Western Union, PayPal
update timeSun, 03 Nov 2024 05:26:57 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

All products are new,click on the precise, easy use, reflecting the sensitive, meet bad environment,took 12months warranty.

Detailed

CMTouch Information & Technology.Co.,Ltd. In Guangzhou, China. We are mainly design and produce touch screen glass and membrane switch keyboard which is especially used in HMI, Kiosk, Pos, Medical Machine, Touch LCD monitor and many other part which need touchscreen and membrane switch keyboard. We can also designe with your sample or request.We focus on delivering a high quality product that meets your exact specifications, and exceeds your expectations.

Data sheet:
1.All product are new and original packaging.
2.click on the precise, easy use.
3.reflecting the sensitive.
4.meet bad environment.
5.practicability.
6.no need change any shell and add any auxiliary to the HMI machine.
7.The quality is stable and reliable, took 12months warranty.

8.OEM is available.

Product specification:

NO.	Product structure	Material	Remarks
1	upper circuit	ITO FILM	0.188mm
2	lower circuit	ITO GLASS	2.0mm
3	spacer	Adhesive	0.1mm
4	tail	FPC

Environmental characteristics

NO.	Item	Specification
1	Operation temperature	-10℃～+60℃
2	Storage temperature	-20℃～+70℃

Electrical characteristics

NO.	Item	Specification	Remarks
1	Rated Voltage	DC 5V 1mA
2	Linearity	≤3.0％	Load 120gf
3	Resistance	/	FPC At connector
3	Resistance	/	FPC At connector
4	Insulation Resistance	≥20 MΩ	DC 25V

Mechanical characteristics

NO.	Item	Specification	Remarks
1	Operating force	20-150g	R0.8 by pen
2	Hardness of surface	≥4H	JISK5400
3	Light Transmission	≥80%
4	FPC Bending	1.0mm, more then 3time	3.2
5	FPC peeling strength	level180, 0.5kgf 10mins	3.2
