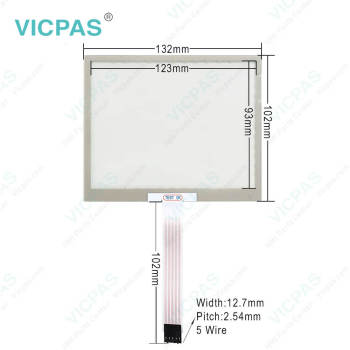

Higgstec T057C-5RBA04 Touch Screen Panel
group nameHiggstec Touch Panel
-
Min Order1 piece
brand nameVICPAS
modelT057C-5RBA04
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal
-
update timeTue, 05 Nov 2024 11:36:50 GMT
Paramtents
Warranty 365 Days
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Touch points Single-touch
Place of Origin China
HMI touch glass touch digitizer glass
HMI panel glass touch screen monitor
Name T057C-5RBA04 Touch Screen Panel
Packging & Delivery
Weight0.50kg / piece
Min Order1 piece
Briefing
Detailed
Higgstec T057C-5RBA04 Touch Screen Panel
T057C-5RBA04150FH touch screen
T057C-5RBA04150FH touch panel
T057C-5RBA04150FH Touch screen glass
T057C-5RBA04150FH Touch screen hmi
T057C-5RBA04150FH touch memrbane
T057C-5RBA04150FH touch digitizer
T057C-5RBA04150FH touchscreen
T057C-5RBA04150FH HMI touch glass
True Flat Resistive Touch Solution
Our True Flat Resistive touch solution combines the simplicity, versatility and durability of our 5-wire resistive technology with an attrac- tive zero-bezel desian.
The fush surface is easier to clean and there will be no dust or dirt buildup or water leakage into the bezel, making it an excellent solution for sterile or dust free environments such as medical dinics, scientific laboratories, restaurants or food processing areas. What's more, you now also incorporate features such as logos or hotkey buttons on the cover design".
Higgstec also uses a special high temperature production process for its resistive screens to fuse the silver sensor circuit onto the glass, preventing it from peeling off during extreme temperature or humidity variations, ensuring greater longevity and durability in harsh operating environments
A front cover shield (glass, fiberglass, PMMA or other material) can also be added to the front of the resistive panel for anti-abrasion and chemical resistance protection.
FAQ:
Question:Attention of Mounting Condition
Answer:
(1) The gasket support of touch panel must allocate outside of
Viewable Area. Reserve enough clearance between panel surface
and enclosure for normal panel operation.
To avoid pressing error, please retain enough space between
surface panel and Bezel.
(2) Bezel opening must not touch Viewable Area, Bezel opening must
be designed between Viewable Area and Active Area.
(3) We recommend elastic material support.
(4) Due to the conductive characteristic of the panel backside, prevent
metal contact after mounting.
(5) Do not use adhesive to bond top surface (ITO Film) of touch panel
with enclosure.
(6) Proper grounding of controller at all times assure normal operation.
(7) During assembly. Please take into consideration the variance in the
different module designs, whether it would cause physical,
cosmetic or functional damages to the touch panel, when
completing the assembly.
(8) After installation，please perform 4 point and 25-point calibration.
