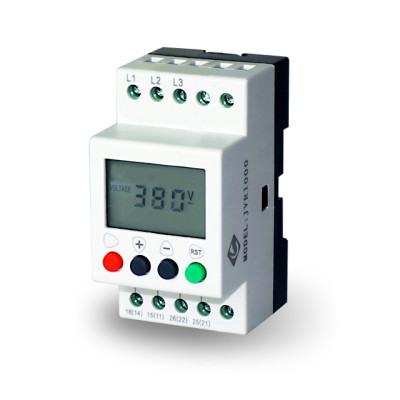

phase sequence relay
Product(s)1 of 1
Unit Price:US $8.4-9.51 /piece
Min Order:1 piece
Industry:Electrical Equipment & Supplies
Rated voltage: 220VAC,380VAC, 440VAC,460VAC,50/60Hz
Delay time for overvoltage and undervoltage: 5-8s fixed
Delay time for phase loss, phase unbalance,phase s: 1-2s fixed
Reset time: 0.5s fixed
Output contacts: 1 C/O
Contact capacity: 3A,250VAC
Degree of protection: IP 20
Mechanical durability: 1000000 cycles
Weight: 110g
Dimensions (H x W x D): 68X30X76mm
Mounting: DIN rail
Region:Zhejiang/Wenzhou
Port:ningbo,shanghai,guangzhou
Payment Method:T/T, L/C, Credit Card, PayPal, Westem Union
Min Order:1 piece
Industry:Electrical Equipment & Supplies
Rated control supply voltage: DC12V. DC24V AC110V. AC220V. AC380V 56/60Hz
Rated power consumption: AC:≤1.5VA DC:≤1W
Delay range: 0.1s~100h
Setting accuracy: ≤5%
Repeat accuracy: ≤0.2%
Repeat power- on interval: ≥200ms
Altitude: ≤2000m
Contact configuration capacity(A): 1 C/O 8A;2 C/O 5A,1C/O+1 instant C/O 5A
IP Class: IP 20
Use category: AC-15
Region:Zhejiang/Wenzhou
Payment Method:T/T, L/C, Credit Card, PayPal, Westem Union, Cash
Turnover:USD 500 thousand - 1 million per year
